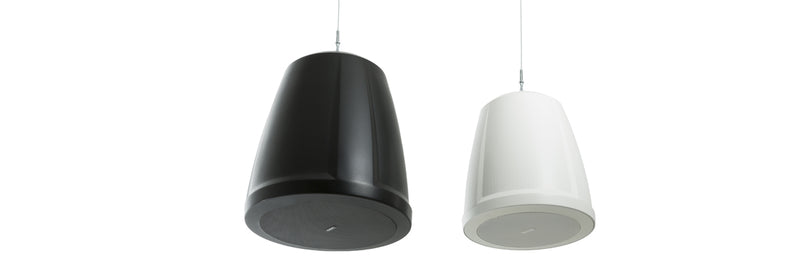

6.5 Pendant Mount Speaker, Black

The QSC AcousticDesign™ AD-P6T is a 6.5" two-way pendant-mount loudspeaker ideally suited for a wide variety of foreground and background sound reinforcement applications which utilize 70/100 V or 16 Ω bypass configurations.

Included

• (2) Quick-link cable assemblies

• (2) Slip-lock fasteners

• Locking euro-block connector

• Sealable input cover and screws

• Snap-fit magnetic grille

Features

• Consistent tonal characteristics across the entire AcousticDesign family in surface, ceiling, and pendant applications

• DMT (Directivity Matched Transition™) waveguide ensures smooth, uniform frequency response over the coverage area

• (2) quick-link suspension cables and slip-lock fasteners provided

• Intrinsic Correction™ voicings available via Q-SYS Platform and CXD amplifiers

• Low-saturation and low-loss 70/100 V transformers with 16 Ω bypass

• Blemish-free removable logo

• Sealable input cover to prevent moisture from entering the input terminal block

• Available in black (RAL 9011) or white (RAL 9010)

• Complete EASE, CF2, CAD and BIM information available online

Specifications

• Effective frequency range: 55 Hz - 20 kHz

• Rated noise power / voltage: 60W / 31 V (rms)

• Rated coverage (-6 dB): 135° conical DMT™

• Directivity factor: 6.5

• Directivity index (dB): 8

• Maximum continuous SPL: 106

• Maximum peak SPL: 112

• Nominal impedance: 16 Ω

• Recommended amplifier: 120W

• LF transducer: 165 mm (6.5") weather treated paper cone woofer

• HF transducer: 19 mm (0.75") aluminum dome tweeter

• Input connector type: Euroblock connector with parallel output

• Enclosure material: Impact Resistant ABS

• Grille material: Powder coated steel

• Ingress protection: IP-34

• Operating environment: Designed for indoor use

• Operating temperature range: -20°C to 50°C (-4°F to 122°F)

• Net weight: 9 lbs. (4.1 kg)

• Product dimensions (Diameter x Height): 11.3" x 12.7" (287 x 323 mm)

• Shipping weight: 11.8 lbs. (5.4 kg)

• Shipping dimensions (H x W x D): 13.5" x 16" x 14" (343 x 406 x 356 mm)
